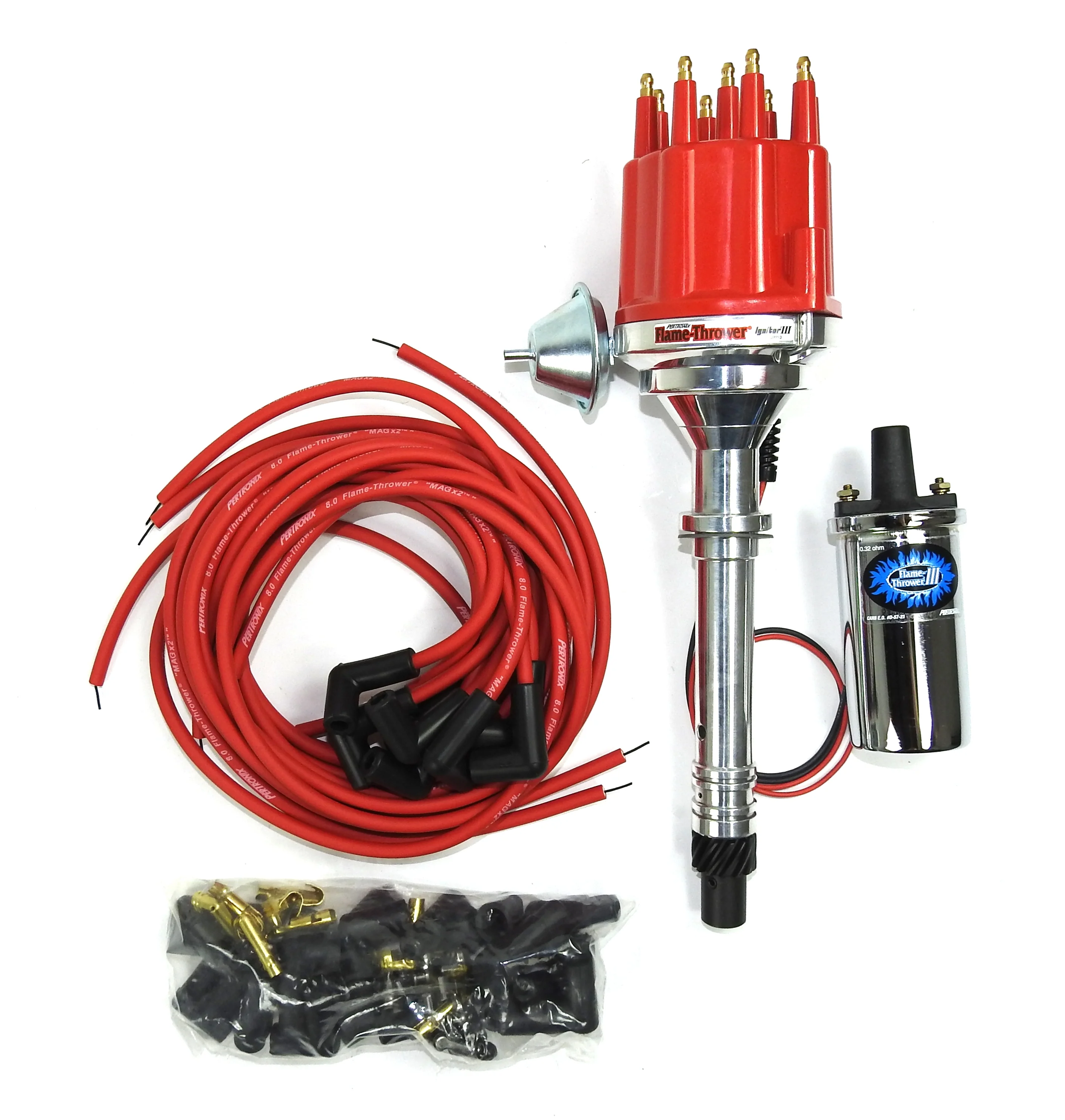

Pertronix Bundle004 Ignition Kit includes Chevy SB/BB Billet Plug n Play Ignitor III Distributor with Red Male Cap, Flame-Thrower III Chrome Coil, Flame-Thrower MAGx2 Universal Red Spark Plug Wires with 90 degree plug boot ends

Features & Benefits

Pertronix Bundle004 Ignition Kit includes Chevy SB/BB Billet Plug n Play Ignitor III Distributor with Red Male Cap, Flame-Thrower III Chrome Coil, Flame-Thrower MAGx2 Universal Red Spark Plug Wires with 90 degree plug boot ends

Highlights: Distributor

• Plug n' Play billet distributors are designed for maximum ignition performance at a price you can afford
• Our Billet I3 distributors ship with Ignitor III multi-spark rev limiting modules.
• Precision CNC machined 6061-T6 billet aluminum housings are lightweight yet offer maximum strength.
• Each billet distributor is hand polished and buffed to a high luster Tempered distributor shaft has low torsion displacement for accurate timing and extended operational life.
• Adjustable mechanical advance with proprietary limiting function permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance.

Highlights: Ignition Coil

• 45,000 volts.
• Ultra Low 0.32 primary resistance.
• Compatible with Ignitor II and III systems as well as most capacitive discharge systems.
• Charges to peak current typically 30-70% faster than other coils.
• Rapid charge time means maximum spark energy is sustained to higher engine RPM.

Highlights: Ignition Wires

• Two current paths for reliability and redundancy. -Primary path: Spiral wound stainless steel alloy. -Secondary path: Carbon impregnated fiberglass center core.
• Low 500 ohm per foot resistance.
• 8mm Silicone jacket to resist high temperatures, moisture, oil and chemicals.
• EPDM (Ethylene Propylene Diene Methylene) inner insulation for superior heat resistance and prevention of arcing and voltage leaks.
• Fiberglass reinforcing braid for added strength and flexibility.
